Description

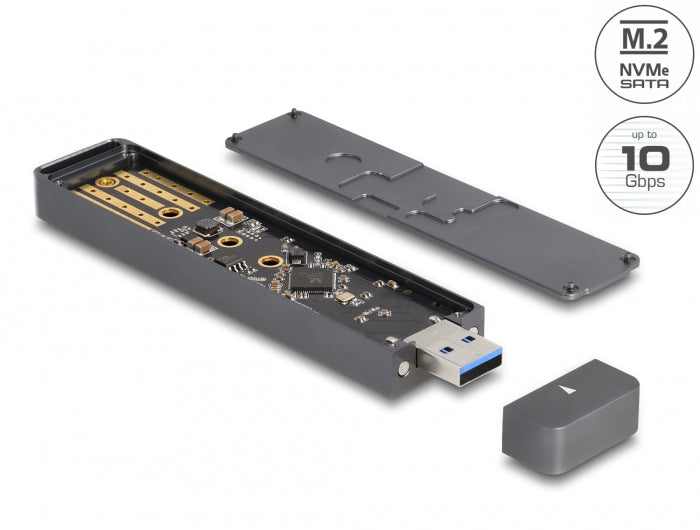

This enclosure by Delock allows the installation of an M.2 PCIe NVMe SSD or an M.2 SATA SSD in 2280, 2260, 2242 and 2230 format. It can be connected to a PC or notebook via USB. The robust metal housing ensures an optimal temperature of the storage .

combo case
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.

specifications
• Connections:
external: 1 x USB 10 Gbps Type-A connector
internal: 1 x M.2 Key M Slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key M or Key
B+M based on SATA or PCIe (NVMe)
• Maximum height of components on the module: 1.5 mm, use of
double-sided modules possible
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• Metal housing
• Dimensions (LxWxH): approx. 121 x 26 x 10 mm
• Hot Plug, Plug & Play

system requirements
• Android 11.0 or higher
• Chrome OS
• Linux Kernel 5.15 or higher
• Mac OS 12.4 or higher
• Windows 8.1/8.1-64/10/10-64/11
• PC or notebook with a free USB Type-A port


package contents
• External enclosure M.2
• Fastening material
• Screwdriver
• 1 x thermal pad
• Lanyard
• Operating instructions
