Description

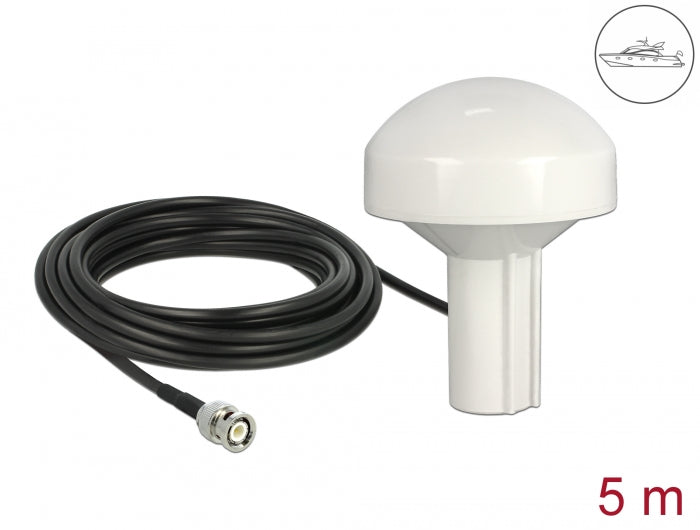

This antenna from Navilock enables the use of the 1575 MHz GPS band indoors and outdoors. Its material is particularly weather-resistant.

specifications
• Connection: 1 x BNC connector
• Frequency range: 1575 MHz
• Antenna gain: 28 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarization: RHCP
• Operating temperature: -40 °C ~ 80 °C
• Housing material: ABS
• Color: white
• Cable type: coaxial
• Cable type: RG-58 U
• Cable attenuation:
0.57 dB @ 1.0 GHz per meter
1.20 dB @ 3.0 GHz per meter
• Cable diameter: approx. 4.95 mm
• Cable length including connection: approx. 5.0 m
• Weight: approx. 0.5 kg
• Dimensions (LxD): approx. 127.0 x 96.0 mm
• Internal thread: 1 ?-14 UNS

system requirements
• Device with a free BNC connector


package contents
• Antenna
