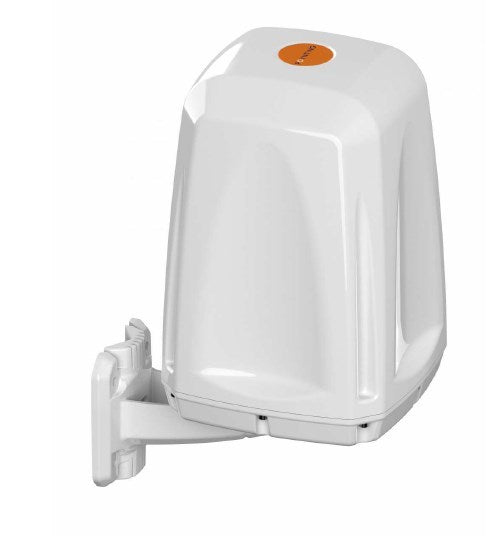

Description: The ePoynt-4 series transforms the antenna housing into an outdoor customer premises equipment (CPE). The housings can accommodate routers with dimensions of up to 140mm x 120mm x 50mm. If your router can be powered by PoE, then you are now able to represent longer distances between the location of your antenna and the recipient. Because instead of the limitations of coaxial cables, you now lay LAN cables and can therefore use significantly longer cable lengths. The cellular 5G/LTE antennas are broadband and operate from 617 to 4200 MHz and cover the most important 5G/LTE bands with excellent gain across all frequencies. The Wi-Fi antennas offer dual-band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi. The EPNT-4 is also fully saltwater resistant, allowing it to operate in highly corrosive environments, including chemical and toxic environments, thanks to the UV stable ASA radome material. The housing also offers a robust mechanical design to withstand adverse weather conditions, making the EPNT-4 vandal and weather resistant (IP67 & IK10). INCLUDED IN DELIVERY • ePoynt-4 antenna • Wall mounting screws • 3mm Allen key • 5mm Allen key • Pipe mount • Surface mount gasket • PCB mounting screws • M6 x 90mm stainless steel U-bolts • Cable ties • M6 Nyloc and standard stainless steel nuts • M6 stainless steel washers HIGHLIGHTS • Broadband cellular coverage from 617 to 4200 MHz, with up to 4x4 MIMO • Dual band Wi-Fi at 2.4 and 5 to 7.2 GHz with up to 4x4 MIMO • Cleverly designed, decorrelated antennas provide excellent MIMO performance in both cellular and Wi-Fi bands • Includes a high performance GPS/GLONASS antenna • Precise mechanical design provides robustness, water and dust protection (IP67) • Wall, pole and surface mounting possible
