Description

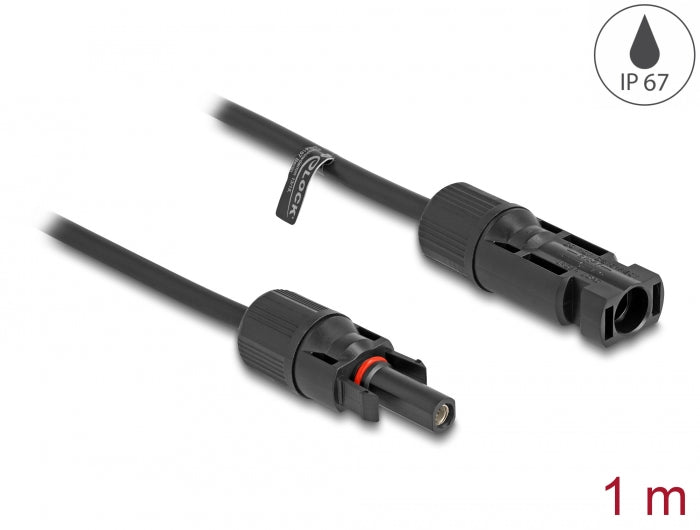

With this DL4 solar cable from Delock, energy generated from a photovoltaic system can be transmitted.

DL4 connectors
The DL4 plugs and sockets have a snap-in function that prevents unwanted interruptions and ensures a secure connection. The connection can be removed again using the appropriate tool.

IP67 dust and waterproof
The DL4 solar cable is protected against dirt and moisture.

specifications
• Connections:
1 x DL4 connector
1 x DL4 socket
• Cable cross section: approx. 4 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 90 °C
• Cable diameter: approx. 5 mm
• Protection class: IP67
• Voltage: max. 600 V
• Color: black
• Length including connections: approx. 1 m

system requirements
• A free DL4 connection


package contents
• DL4 cable
