High data speeds up to 10Gbps
Compatible with SFP+ MSA (Multi-Source Agreement)
Backwards compatible with SFP (1Gbps)
Simple plug-and-play with hot-pluggable SFP 20-PIN design
I/O connectors for high-speed differential signal applications
Improved Pluggable Form-Factor (IPF) compliance for optimized EMI/EMC performance
Lower power consumption of maximum 0.5W
Can be used with all types of devices equipped with an SFP+/SFP port, such as switch, storage, server, NIC (PCI-E adapter), data center, high-performance computing, etc.

HARDWARE

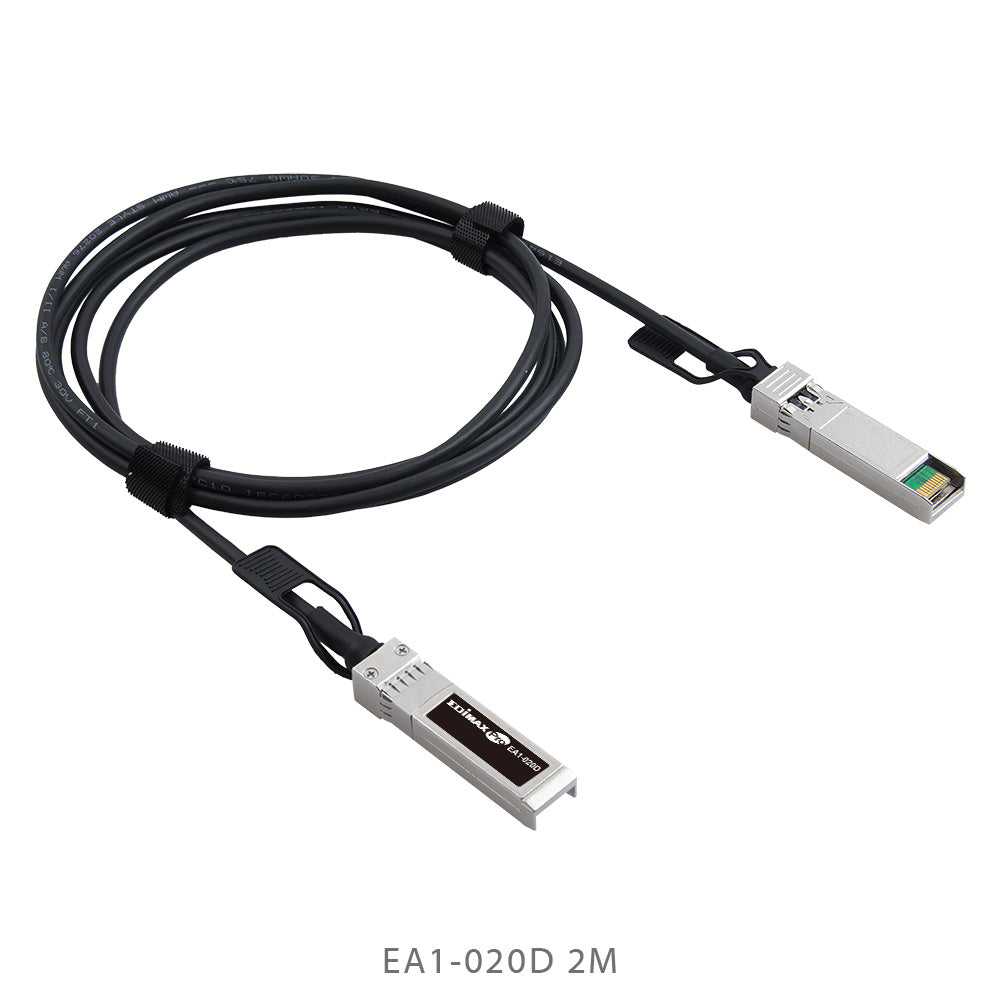

Cable type Passive Twinax copper cable, low-oxygen copper
SFP+ connector on both ends
conductor cross-section 30AWG
PVC socket

Dimensions
Connection socket: 13.6 (W) x 57 (D) x 8.5 (H) mm
Cable length:
&bull,EA1-005D: 0.5 meters
&bull,EA1-020D: 2 meters

PERFOMANCE
Data transfer speed Up to 10Gbps
Bit Error Rate (BER) &gt, 10-12

MISCELLANEOUS

standard
SFP+ MSA (Multi-Source Agreement)
SFF 8431, High-speed electrical interface SFP+
SFF-8472, Digital Interface for Diagnostic Monitoring for Optical Transceivers

temperature range
Storage: -40 -85°C
Operation: 0 - 70 °C

certification
CE, RoHS
