With Wi-Fi 6, optimal WLAN for all devices

The new Wi-Fi 6 standard takes into account the constantly growing number of Wi-Fi devices. From smartphones to tablets, PCs, 4K TVs and speakers to smart lamps, more and more devices are being used simultaneously in the Wi-Fi network. Thanks to Wi-Fi 6 with two radio units, data rates of up to 3,000 Mbit (2,400 Mbit/s / 5GHz + 600 Mbit/s / 2.4GHz) can be achieved. Wi-Fi 6 also ensures a better distribution of the available bandwidth. This means that even older smartphones or notebooks benefit from the performance of the FRITZ! Repeater 1200 AX.

Perfect in WLAN Mesh
In the WLAN Mesh, several distributed WLAN access points (e.g. FRITZ!Box and FRITZ!Repeater) are combined into a single intelligent WLAN network. The distributed FRITZ! devices exchange information with each other and optimize the performance of all WLAN devices. Intelligent technologies such as crossband repeating, band steering and the extended auto channel ensure that WLAN coverage is always optimal. This means that the best connection is always established where it is needed. Streaming, gaming and downloads reach every corner of every room seamlessly and at top speed. The entire WLAN conveniently has just one name, one password and is securely encrypted.

Maximum safety and comfort
The latest encryption standards guarantee the security of your privacy throughout the entire WLAN mesh. The housing LED enables you to determine the optimal position of the FRITZ! Repeater 1200 AX by displaying the radio signal strength. The repeater is conveniently plugged into a power outlet, connected at the touch of a button and automatically added to the FRITZ! Mesh. A gigabit LAN port is available for ultra-fast NAS connections, a LAN bridge or connecting a network device without WLAN functionality.

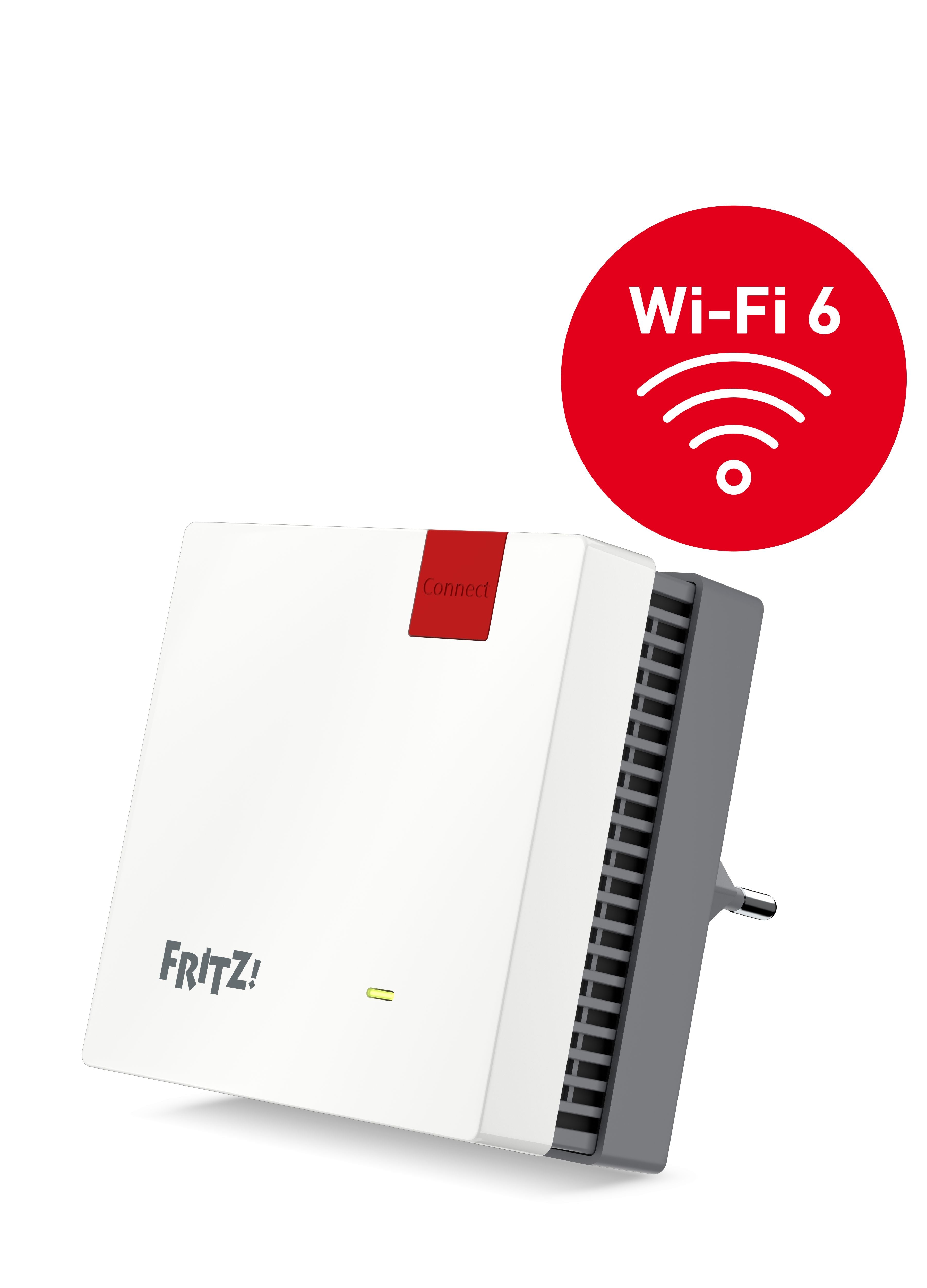

AVM FRITZ!Repeater 1200 AX at a glance:

• More Wi-Fi range for all connected devices
• Innovative Wi-Fi 6 designed for a demanding home network with a variety of WLAN devices
• Support for 160 MHz wide channels for ultra-fast WLAN with up to 3,000 Mbit/s (WLAN AX)
• Two radio units for ultra-fast transmissions in the 5 GHz band (up to 2,400 Mbit/s) and maximum range in the 2.4 GHz band (up to 600 Mbit/s)
• For very high demands (e.g. parallel 4K streams) in a home network with a fast Internet connection and several WLAN devices used simultaneously
• WLAN Mesh: Multiple WLAN access points are combined into a single intelligent WLAN network with optimal performance
• Intelligent automatic band selection (cross-band repeating)
• Automatic adoption of the existing WLAN encryption of the FRITZ!Box
• Ultra-fast Gigabit LAN connection for setting up a LAN bridge or for network devices without WLAN function
• Support for the latest WPA3 security standard and encrypted connections in public Wi-Fi hotspots (OWE)
• Simple and secure installation at the push of a button (WPS)
• Support for WLAN guest access of the FRITZ!Box
• Determination of the optimal location by LED display of the connection quality or using the FRITZ!App WLAN
• Energy saving through night switching for WLAN and ECO mode

Ideal additions:

• FRITZ!Box 7590 AX
• FRITZ!Box 7530 AX
• FRITZ!Box 6660 Cable

Scope of delivery:

• FRITZ!Repeater 1200 AX
• installation instructions
