Description

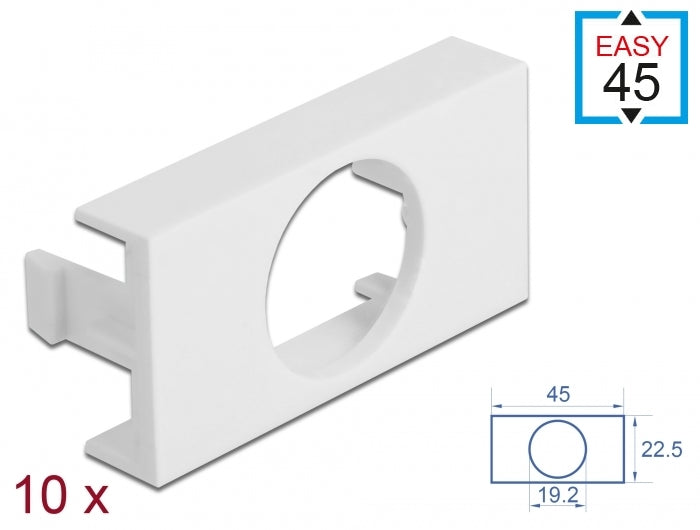

This module cover by Delock provides a hole cutout of 19.2 mm. Thanks to the simple snap-in mechanism, the cover sits firmly in place and can be easily replaced if necessary.

Easy 45 connects
Easy 45 is a variable, modular system that allows you to put together components such as sockets, HDMI or USB connections according to your own needs. The Easy 45 modules are standardized and can be mounted in various module carriers or parapet channels. Easy 45 forms the interface between electrical, network and system installation and many peripheral devices such as TVs, monitors, printers, notebooks and much more.

specifications
• Material: PC plastic
• Suitable for module carrier Delock Easy 45
• Suitable for 45 mm parapet ducts with at least 45 mm installation depth
• Hole cutout: Ø 19.2 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): approx. 45.0 x 22.5 x 22.0 mm
• Color: white

system requirements
• One free module slot Delock Easy 45 (22.5 x 45 mm)



package contents
• 10 x module cover
