Description

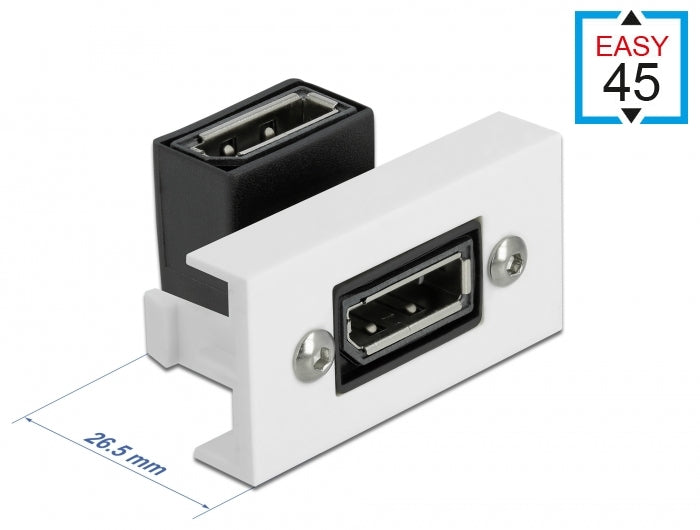

This Easy 45 module by Delock provides a DisplayPort socket. Thanks to the simple snap-in mechanism, the module sits firmly in place and can be easily removed if necessary.

Easy 45 connects
Easy 45 is a variable, modular system that allows you to put together components such as sockets, HDMI or USB connections according to your own needs. The Easy 45 modules are standardized and can be mounted in various module carriers or parapet channels. Easy 45 forms the interface between electrical, network and system installation and many peripheral devices such as TVs, monitors, printers, notebooks and much more.

specifications
• Connections: 2 x DisplayPort socket
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
Hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Pin 20 connected (Supports 3.3 V)
• Material: PC plastic
• Suitable for module carrier Delock Easy 45
• Suitable for 45 mm parapet ducts with at least 45 mm installation depth
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): approx. 22.5 x 45.0 x 26.5 mm
• Color: white

system requirements
• A free module slot Delock Easy 45


package contents
• Easy 45 DisplayPort module
