Description

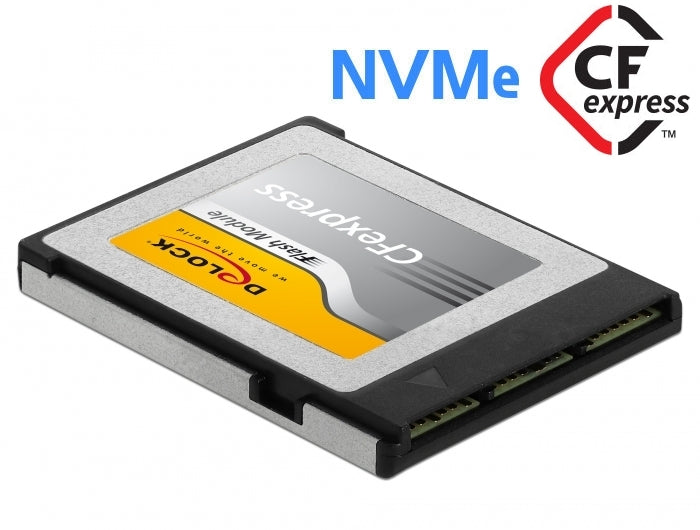

This flash module by Delock is a memory in CFexpress 1.0 (CFX) type B format. The memory card is particularly suitable for photo and video applications, as the PCI Express standard allows large data to be exchanged very quickly. In addition, the card is suitable for industrial applications in which removable storage media are required due to the PCIe or NVMe standard and the low latencies.

specifications
• Connection: 1 x CFexpress 1.0 • Storage capacity: 256 GB • Interface: PCIe x2 Rev. 3.0 • Form factor: Type B • Flash type: TLC • Maximum reading speed: 1550 MB/s • Maximum writing speed: 900 MB/s • MTBF: 1,500,000 hours • Power consumption: max. 2.9 W • Vibration: 20G • Shock: 1500G • Storage temperature: -40 °C ~ 85 °C • Operating temperature: 0 °C ~ 70 °C • Supports NVM Express (NVMe) • Supports TRIM • Supports SMART • Dimensions (LxWxH): approx. 38.5 x 29.6 x 3.8 mm

system requirements
• A free CFexpress slot


package contents
• CFexpress memory card
