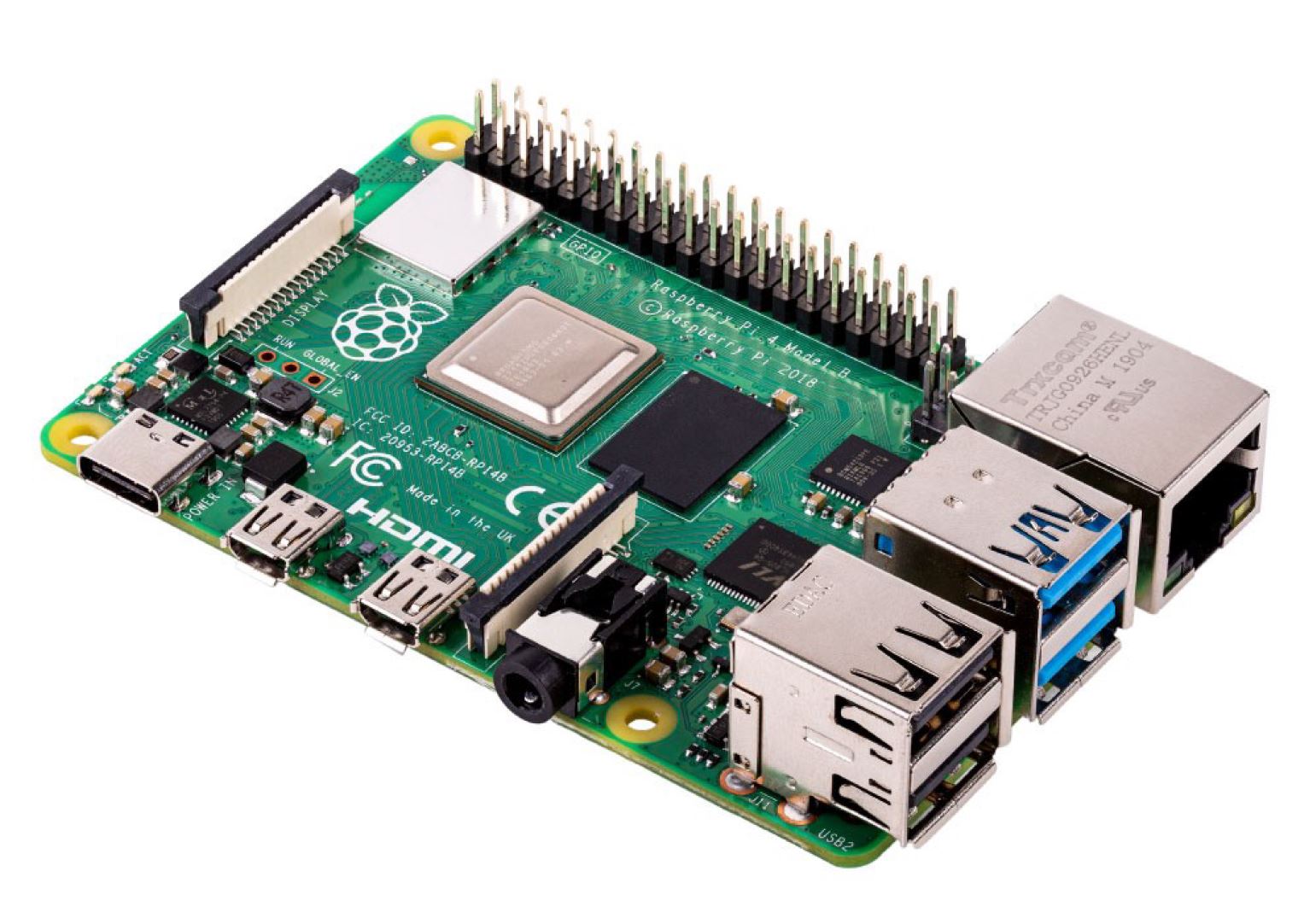

Raspberry Pi 4 Model B is the latest addition to the popular Raspberry Pi family of computers. Compared to the previous generation Raspberry Pi 3 Model B+, it offers groundbreaking increases in processor speed, multimedia performance, memory and connectivity, while maintaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B offers desktop performance comparable to entry-level x86 PC systems.

Key features of this product include a powerful 64-bit quad-core processor, dual display support with resolutions up to 4K via two micro HDMI ports, hardware video decoding up to 4Kp60, up to 4GB RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

Technical data

• processor
  • Broadcom BCM2711 chipset
  • 64 bit Quad Core ARM v8 Cortex-A72 @ 1.5GHz
• RAM
  • 4 GB LPDDR4
• connectivity
  • 2.4GHz and 5GHz IEEE 802.11 b/g/n/ac wireless LAN
  • Bluetooth 5.0 BLE
  • Gigabit Ethernet
  • 2x USB 3.0 port
  • 2x USB 2.0 port
• access
  • 40 pin GPIO header (fully backwards compatible with previous boards)
• image &amp, sound
  • 2x micro HDMI Type D port (up to 4K@60 Hz support)
  • MIPI DSI Display Port
  • MIPI CSI camera port
  • Combined 3.5mm 4-pin jack socket for analog audio and composite video
• multimedia
  • H.265 (4Kp60 decoding) / HEVC
  • H.264 (1080p60 decoding, 1080p30 encoding)
  • OpenGL ES, 3.0 graphics
• SD card support
  • Micro SD format for loading the operating system and as data storage
• power supply
  • 5V/3.0A DC via USB Type C socket - (A high-quality 2.5A power supply from the Raspberry Pi 3 / 3B+ can be used via adapter (see under Accessories) if downstream USB peripherals consume less than 500mA in total.)
  • 5V DC via GPIO header
  • Power over Ethernet (PoE) - requires an optional PoE HAT
• Dimensions
  • 85 x 56 x 16 mm
  • Hole diameter: 2.75mm
