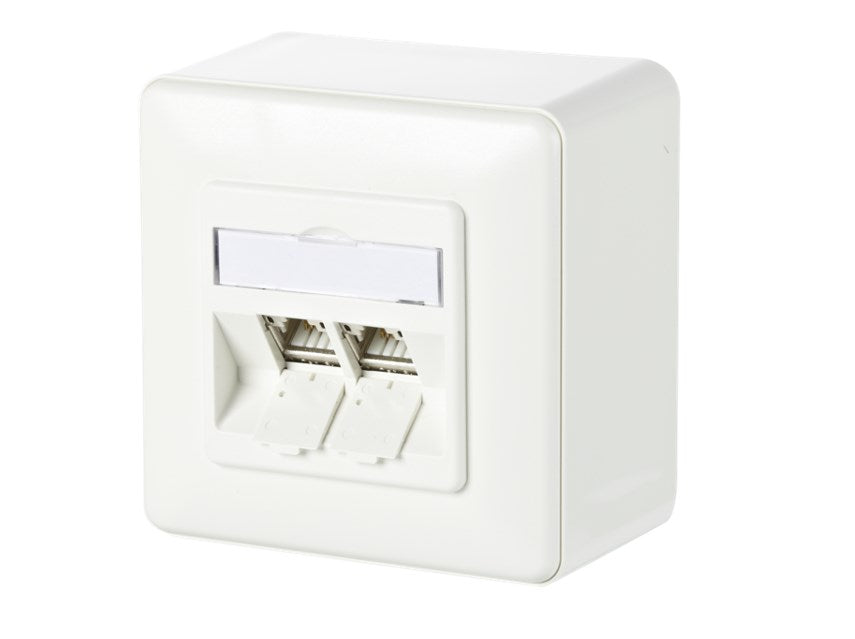

• Surface-mounted connection unit with C6A module 180°
• GHMT Cat.6A re-embedded PVP certified
• Cat.6A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
• Compliance with Class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
• Tested: Component up to 600 MHz, Link up to 800 MHz
• For 10 GBit Ethernet (IEEE 802.3an)
• Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
• Connection of data cables AWG 24/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals
• Plugging direction of the module inclined 45° downwards
• Strain relief with locking clip on the charging piece
• With viewing window for enclosed label insert
• Integrated dust protection flaps
• Cover parts pure white RAL 9010, matt structured surface
