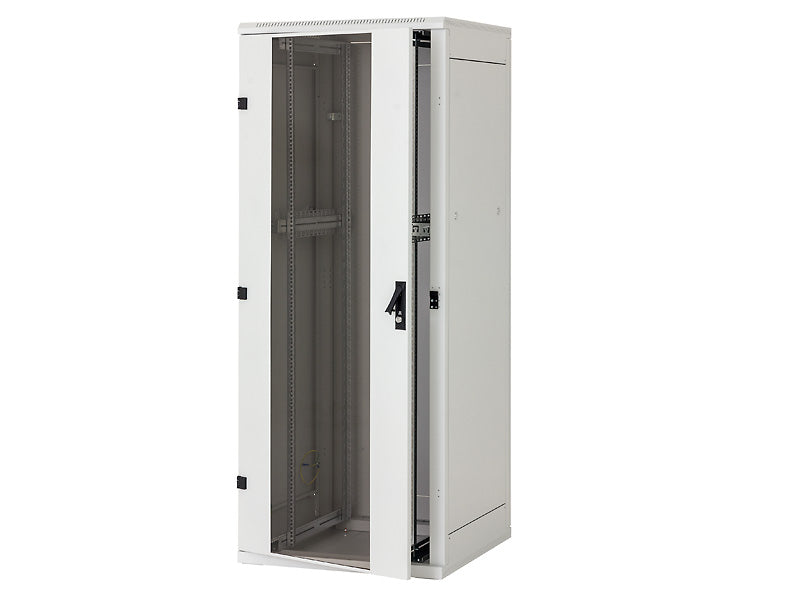

Universal data and telecommunications distributor. The sufficient load capacity for common applications, the large variety of dimensions and variants with a wide range of accessories and the perfect workmanship of all details make it the best-selling floor-standing distributor in our range.

High stability of the construction
The RMA has a robust welded construction. The high quality workmanship and the latest technologies ensure that the distributor looks great.

Flexible door opening
The hinge system allows the door to be opened almost 180°. The doors can be easily removed and the door hinge changed.

Triton swing-lever handles
We manufacture our own swivel lever handles for floor-standing distributors. By replacing the plastic module (not included in the package), a classic locking cylinder or half cylinder can be selected.

Adjustable vertical rails
The vertical 19" grid rails are infinitely adjustable in the cabinet depth. This facilitates the installation of components and cable management.

Removable side and back panels
The RMA has a welded frame and removable side panels. These, like the rear panel, are attached to the frame with keyed alike locks as standard.

Special doors for ventilation units
For this distributor type, a special solid sheet metal door can be ordered for the installation of the RAx-CH-X0x-X3 ventilation units.

Break-out veneers
The cable entries in the rear part of the distributor are provided with break-out blanking plates. They can be sealed against dust using the brush strip. A plastic frame serves to protect the cables from damage (both are part of the accessories pack).

opening for the ventilation unit
The large opening with a break-out cover allows a Triton fan plate to be installed and removed from the outside without the need for screws.

castors, leveling feet
Mounting option for castors, heavy-duty castors and leveling feet.

back wall
The removable side and rear panels have the same keyed alike locks as the front door as standard.

ventilation slots in the frame
The RMA distributors have ventilation slots in the frame to supply cooling air to the installed components. Cooling can be supported by installing a ventilation unit.

grounding
All removable parts are connected to each other and earthed according to the relevant standard requirements.

Middle pair of vertical mounting rails
For distributors with a depth of more than 800 mm, we already supply a third pair of vertical mounting rails as standard, which, thanks to their open profile, do not interfere with the installation of deeper components.


- 19“– floor-standing distributor with protection class IP20
- Incl. 6 adjustable rails for installation
- Welded steel construction with removable walls
- Front 4mm safety glass
- Rear back wall
- The permissible load capacity of each door is max. 20 kg
- The distribution frame and all removable parts (side and rear panels, doors) are connected with earthing cables
- Cable entries with break-out covers
