Especially for use with small PBXs or DSL routers with analogue telephone connections where the previous WK978 does not ring loudly enough.

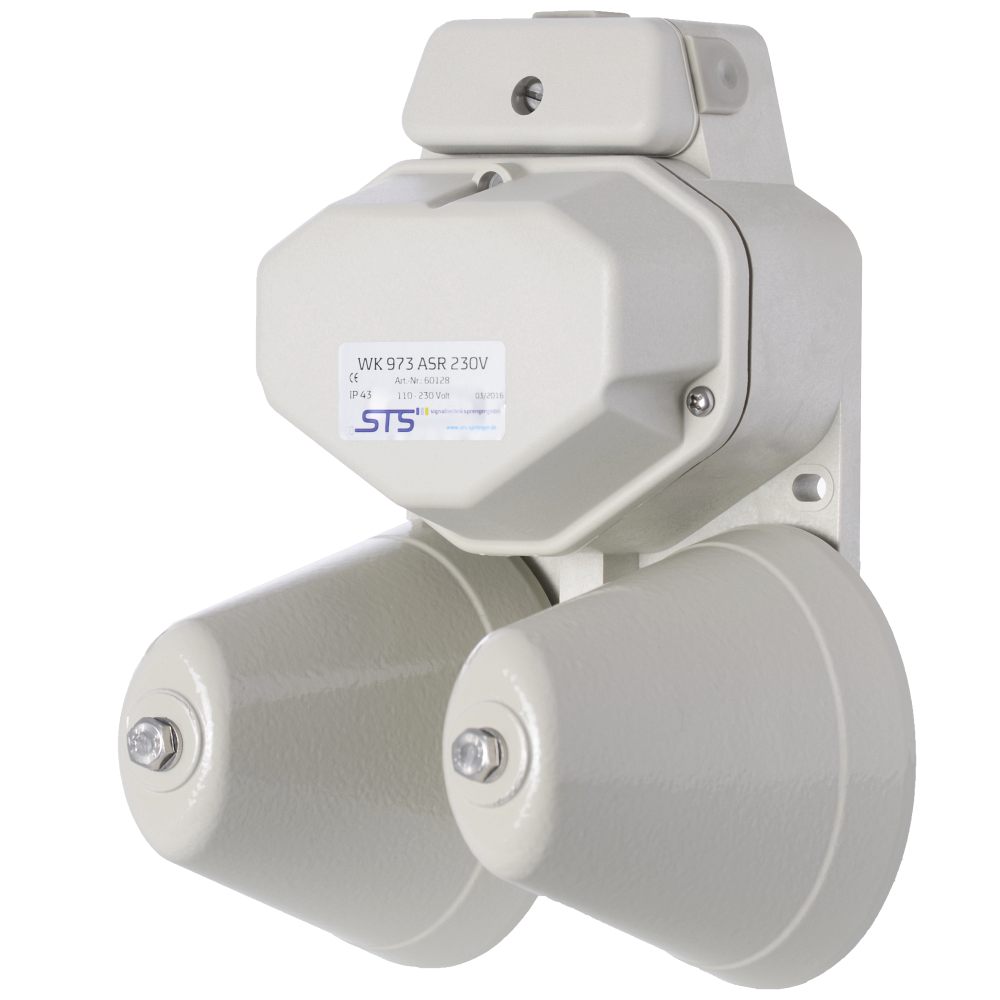

The AC outdoor alarm clock WK 973 is an additional weatherproof electromechanical signaling device. It is intended for additional signaling in the private and industrial sector. Due to its low switching threshold and the low power consumption of the integrated connection relay, the WK 973 is well suited to be operated on small PBXs or DSL routers with analogue telephone connections.

The WK 973 can also be operated in parallel with devices that are already connected and hardly puts any strain on the a/b port. However, an additional power connection is required for the bell, which makes this additional alarm clock a few decibels louder than the WK978.

Features:
- weatherproof
- for robust outdoor use
- for additional call signaling
- two-tone sound
- reverse polarity protected
- separate connection chamber

Technical data:
Volume at 1 m distance: > 90 dB (A)
Operating voltage alarm clock: 110 - 230VAC
Operating voltage frequency range: 25 - 54 Hz
Current consumption alarm clock: 8-17 mA
Ring voltage 25Hz: 14-100VAC
Ring voltage 50Hz: 12-100VAC
Ring current consumption: max. 4mA
Splashproof, protection class IP 43
Housing made of glass fiber reinforced plastic (polycarbonate)
bell bowls made of die-cast light metal
Weight: 960 g
Color: pebble gray similar to RAL 7032
Dimensions L x W x H approx. in mm: 208 x 170 x 115 Scope of delivery: Without connection cable
