Description

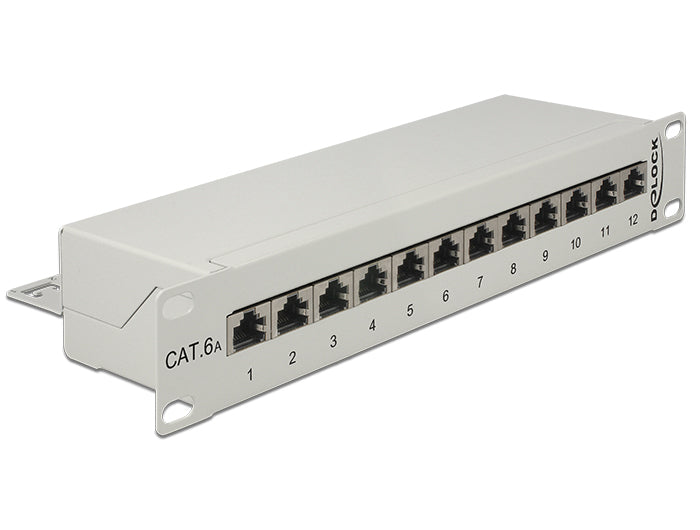

This patch panel by Delock can be installed in a 10? equipment cabinet. Up to 12 network cables can be installed on the LSA strips using a punch-down tool.

specifications
• Connections:
external: 12 x RJ45 socket
internal: LSA strips
• For installation in 10? cabinets, 1 HE
• Cable routing 180°
• Shielded
• Complies with Cat.6 _A requirements according to ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A according to ANSI/TIA 568-C.2
• Assignment according to TIA-568A/B
• For cable diameters up to 0.644 mm (22 - 26 AWG)
• Suitable for solid and stranded conductors
• Metal housing
• Color: light gray RAL 7035
• Dimensions (LxWxH): approx. 254 x 109 x 44 mm
package contents
• 10? patch panel
• Cable ties
