Description

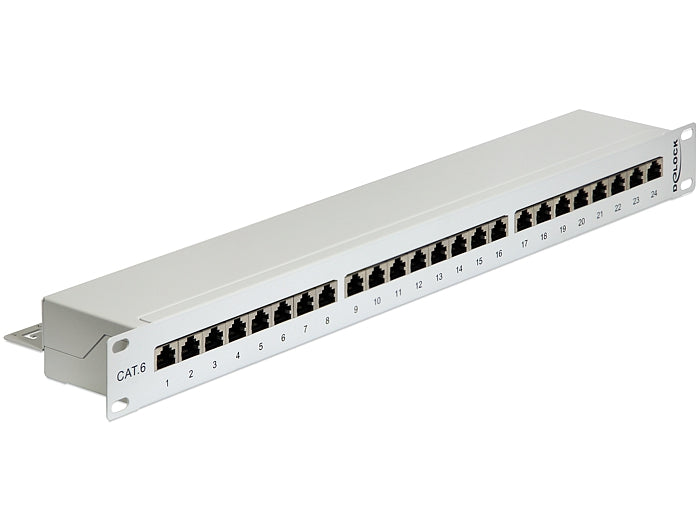

This patch panel by Delock can be used for installation in a 19 inch equipment cabinet. You can install up to 24 network cables on the LSA strips using a punch-down tool.

specifications
• Connections:
external: 24 x RJ45 socket
internal: LSA strips
• For mounting in 19" cabinets, 1 U
• Cable routing 180°
• Shielded (Cat.6)
• Complies with Cat.6 Class E requirements according to ISO/IEC 11801, EN 50173,
Cat.6 according to ANSI/TIA 568 B.2-1
• Assignment according to TIA-568A/B
• For cable diameters up to 0.644 mm (22 ~ 26 AWG)
• Suitable for solid and stranded conductors
• Metal housing
• Color: light gray RAL 7035
• Dimensions (LxWxH): approx. 483 x 109 x 44 mm
package contents
• 19" patch panel
• Cable ties
