Description

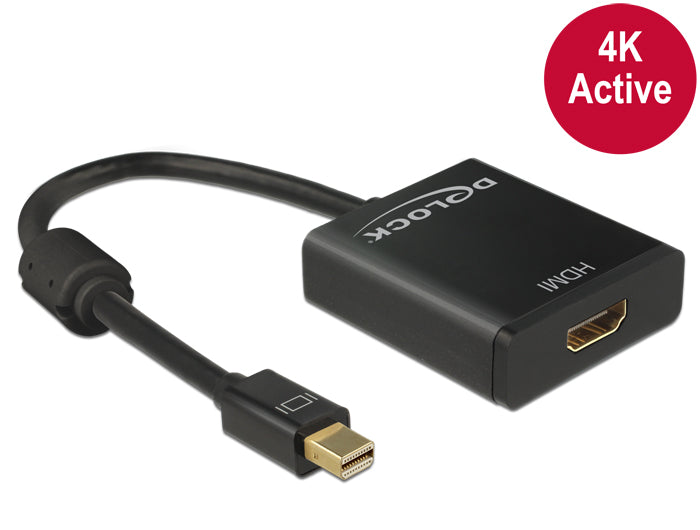

With this adapter by Delock, an HDMI monitor can be connected to a system via a free mini DisplayPort interface. The adapter supports a resolution of up to 4K Ultra HD at 60 Hz and is downwards compatible with Full HD 1080p. The adapter offers active conversion, so it is also suitable for graphics cards that cannot output DP++ signals.

specifications
• Connections:
1 x mini DisplayPort 20 pin connector >
1 x HDMI-A 19 pin socket
• Chipset: Parade PS171
• DisplayPort 1.2 and High Speed ​​HDMI specification
• Active converter, for graphics cards with DP and DP++ output
• Resolution up to 3840 x 2160 @ 30 Hz (depending on system and
connected hardware)
• Supports 3D displays (1080p @ 120 Hz)
• Supports HDCP 1.3
• Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and
HBR audio formats up to 24 bit resolution with a sampling rate up to 192 kHz
• Gold-plated contacts
• 1 x ferrite core
• Cable length without connectors: approx. 20 cm
• Color: black
• OS independent, no driver installation required

system requirements
• A free mini DisplayPort socket


package contents
• Adapter mini DisplayPort to HDMI
