Description

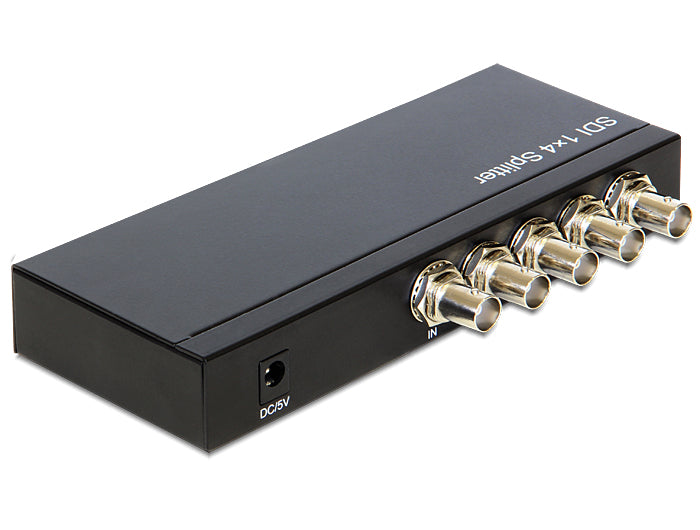

This SDI splitter by Delock can be used to output signals from an SDI input source, such as a DVR, an HD-SDI camera or another SDI device, to up to 4 output sources such as monitors.

specifications
• Connections:
Entrance:
1 x BNC socket (3G-SDI)
1 x 5 V DC power jack
Exit:
4 x BNC socket (3G-SDI)
• Supported resolutions:
SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Robust metal housing
• Power consumption: max. 1.2 W
• Dimensions (LxWxH): approx. 162 x 82 x 25 mm
package contents
• 3G-SDI splitter
• Power supply
