Description

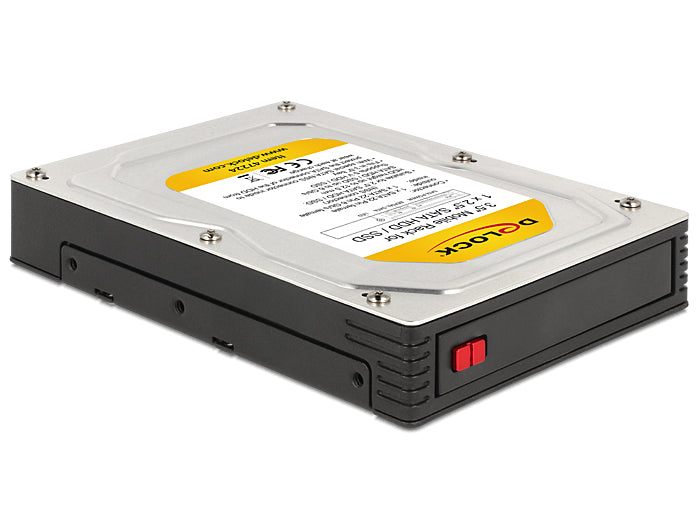

This Delock mobile frame can be used both externally and internally to connect a 2.5? SATA hard drive. Slide the hard drive directly into the frame and connect it to a Power Over eSATA port using an optional cable, or internally to SATA. The size of the frame corresponds to that of a 3.5? hard drive. This means that you can install it in any 3.5? slot or in a 5.25? mobile frame.

Specifications
• Connections:
outside: 1 x SATA 22 pin connector
inside: 1 x SATA 22 pin socket (NSS connector)
• Suitable for 2.5? SATA HDD / SSD:
Hard drive height up to 12.5 mm
SATA HDD / SSD up to 6 Gb/s
Supports 5V HDD / SSD
• Data transfer rate up to 6 Gb/s
• Applications:
1. internally in a 3.5? slot
2. in a 5.25? removable frame
3. external via eSATAp (cable optional)
• Hot-swap
• With special SATA NSS connector internally to protect the SATA connector of the
Hard drive from wear and tear with every change
• Optional HDD fan (mounting holes on the bottom of the mobile rack)
• OS independent, no driver installation required

System requirements
• For external use:
PC or notebook with a free Power Over eSATA port (optional eSATAp cable
Art. 84397 / 84396 / 84432)
• For internal use:
1 SATA data cable
PC with a free SATA port
Power supply with a free SATA power connector


Package contents
• Removable frame
• 1 x 2.5? hard drive protective film
• Screws
• User manual
