Description

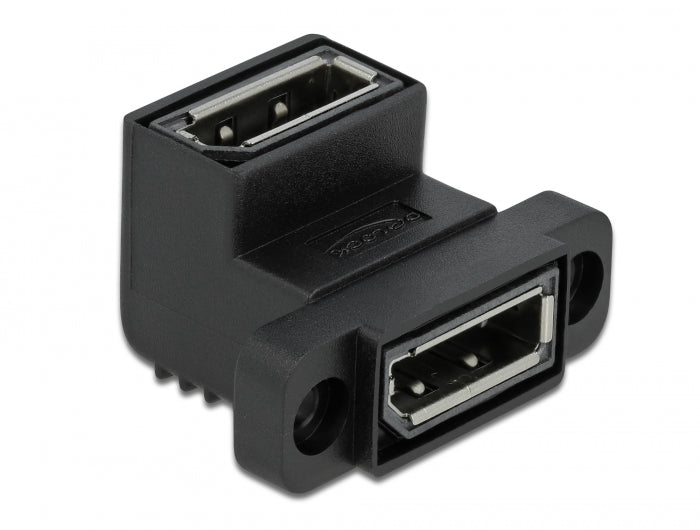

This Easy 45 adapter by Delock is used to connect two DisplayPort cables. The adapter can be used to extend cables or as a gender changer. The two holes on the side allow the adapter to be screwed into devices or furniture, for example.

Suitable for Delock Easy 45 module cover
The shape and hole spacing are optimally matched to the Delock Easy 45 module cover with rectangular cutout. In combination with the module cover, the adapter can be mounted in a Delock Easy 45 module carrier or in a 45 mm parapet channel.

specifications
• Connections: 2 x DisplayPort socket
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
Hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Pin 20 connected (Supports 3.3 V)
• Material: PC plastic
• Suitable for module panel rectangular cutout 12.5 x 21.5 mm Delock Easy 45
• Hole spacing: approx. 23.5 mm
• Dimensions (LxWxH): approx. 36.0 x 26.5 x 20.5 mm
• Color: black

system requirements
• A free DisplayPort connector


package contents
• DisplayPort adapter
