Description

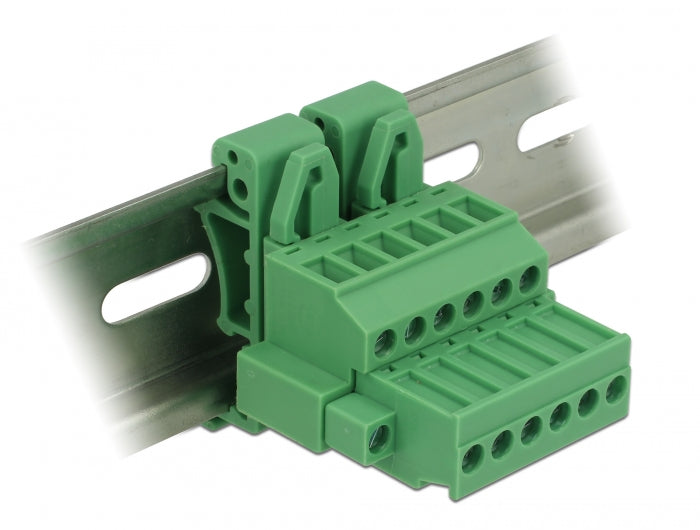

This terminal block set by Delock is suitable for mounting on a DIN rail. This allows data or power cables to be connected via the terminal block.

specifications
• Connections:
Terminal block:
1 x 6 pin terminal block connector
1 x 6 pin terminal block
connection terminal:
1 x 6 pin terminal block socket
1 x 6 pin terminal block
• Pitch: 5.08 mm
• Ambient temperature: -40 °C ~ 105 °C
• Can be used for a wire cross-section range from 24 to 12 AWG
• DIN rail mounting: 35 mm
• Material: plastic
• Color: green
• Dimensions (LxWxH): approx. 42.50 x 34.90 x 41.50 mm
package contents
• Terminal block
• DIN rail clip
• Connection terminal
