Description

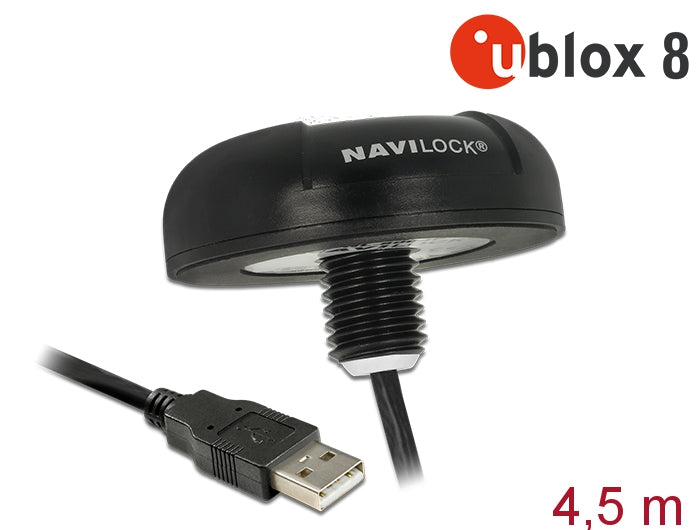

The USB 2.0 Multi GNSS receiver with the u-blox 8 chipset has a built-in active antenna. Navigation is possible in conjunction with a notebook and the corresponding navigation software. The NL-8004U GNSS receiver can be mounted on various vehicle roofs (cars, trucks, buses, etc.) using the included mounting material. With its housing shape, it blends inconspicuously into the vehicle concept.

specifications
• Connection: USB 2.0 Type-A connector
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (kx 0.5625) MHz
BEIDOU COMPASS: B1, 1561.0980MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Processes signals from up to 72 satellites simultaneously
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update Rate:
single GNSS: 18 Hz (e.g. GPS solo)
multiple GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensitivity max. -167 dBm
• IPX7 protection class
• LED display for GPS status
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in approx. 26 seconds
• Hot start in approx. 1 second
• Position accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: approx. 4.5 m
• Dimensions (Ø x H without thread): approx. 62 mm x 21 mm

Microsoft Sensor and Location Platform ( Internet )
• Compatible with Windows application software (e.g. weather, maps, etc.)
• Implement GNSS positioning platforms via API (32bit)

system requirements
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• PC or notebook with a free USB Type-A port
• For devices with OTG function and optional OTG adapters: Windows 10


package contents
• USB 2.0 receiver
• Fastening material: nut and washer stainless steel
• Navilock Support CD including driver and user manual
