Description

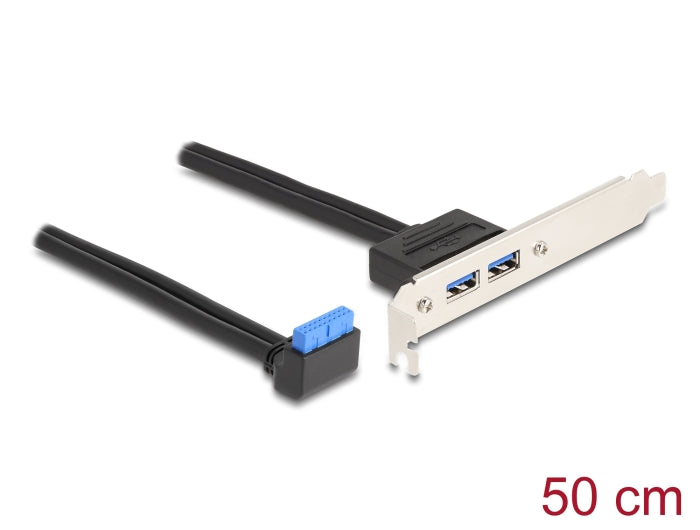

This slot bracket by Delock expands the PC by two USB 5 Gbps Type-A sockets. The cable of the slot bracket is connected internally to the mainboard to a 19 pin USB 5 Gbps header connector. This leads the internal connection to the outside in order to connect devices with USB Type-A connection to the computer.

Special feature
• With internal metal thread

specifications
• Connections:
1 x 19 pin USB 5 Gbps female post connector 90° angled
2 x USB 5 Gbps Type-A socket
• Data transfer rate up to 5 Gbps
• Screw type: #4-40 UNC
• Hole spacing: approx. 48 mm
• Wire cross-section:
28 AWG data cable
24 AWG power line
• Cable diameter: approx. 5.8 mm
• Cable sheath material: PVC
• Color: black
• Length: approx. 50 cm

system requirements
• PC with a free slot
• Mainboard with a free 19 pin USB 5 Gbps header


package contents
• Slot bracket
