Description
This RJ45 connector from Delock can be used to connect network cables. The connector can be mounted on different cable types without tools and saves time.

With cable gland and dust protection
The screw connection protects the cable end on the RJ45 connector from damage caused by abrasion and high tensile loads. The dust cap protects the RJ45 connection from dirt.

specifications
• Connections:
1 x RJ45 connector (8P/8C)
1 x LSA (tool-free)
• Cat.6A specification
• Assignment according to TIA-568A/B
• For solid and stranded conductors (26 - 22 AWG)
• For cable diameters of 5.0 - 8.5 mm
• Material: zinc die-cast
• Dimensions (LxWxH): approx. 56.2 x 14.2 x 12.5 mm

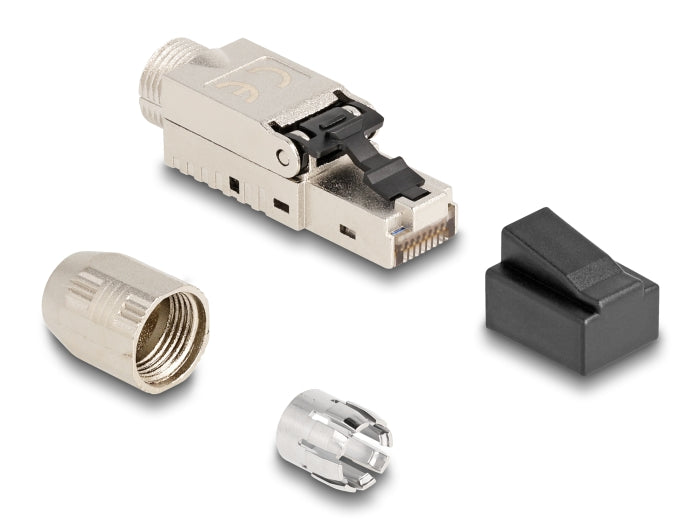

package contents
• RJ45 connector
• Threading aid
• Cable gland
• Cable fixation
• Dust protection
