Description

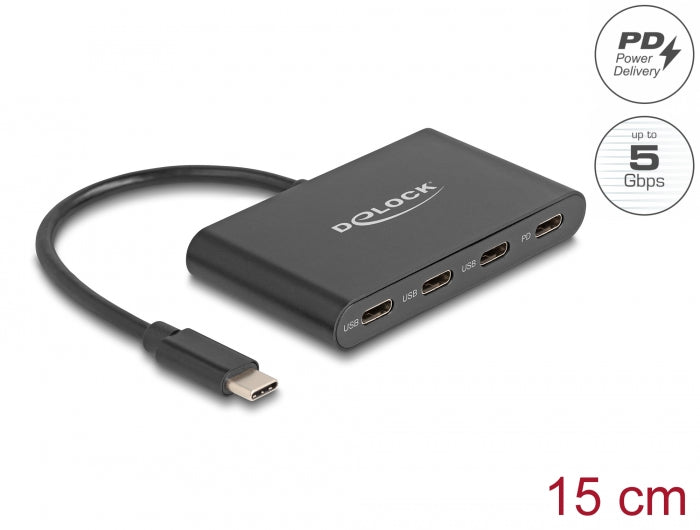

The USB hub by Delock is the mobile companion for notebooks or tablets with USB Type-C™ port. Up to 3 USB Type-C™ devices can be connected to the hub.

USB Power Delivery (USB PD 3.0) support up to 100 watts
The hub has a USB Type-C™ Power Delivery port, which can be used to connect the notebook or tablet's power adapter to charge it. The hub can also be used without a power adapter.

Small, stable helper
Due to its small dimensions and its sturdy housing, this Delock hub is particularly suitable for use on the go. It can simply be packed in your bag together with your notebook or tablet and used when needed.

Notice
DisplayPort Alternate Mode (DP Alt Mode) is not supported, so no video signals are transmitted and no monitors can be connected.

specifications
• Connections:
1 x SuperSpeed ​​USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ connector
3 x SuperSpeed ​​USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ socket
1 x USB Type-C™ Power Delivery socket
• Chipset: Renesas D720210, VIA VL102
• Data transfer rates up to:
SuperSpeed ​​USB 5 Gbps,
Hi-Speed ​​480 Mbps,
Full-Speed ​​12 Mbps,
Low-Speed ​​1.5 Mbps
• Electrical power per port: max. 7.5 watts (5 V / 1.5 A)
• Total electrical power: max. 10 watts (5 V / 2 A)
• Plug & Play
• Housing material: aluminum
• Color: black
• Cable length without connectors: approx. 15 cm
• Dimensions (LxWxH): approx. 77 x 43 x 11 mm

system requirements
• Linux Kernel 5.11 or higher
• Mac OS 12.3.1 or later
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th generation) or later
• iPad Pro (3rd generation) or later
• Surface Pro 7
• PC or notebook with a free USB Type-C™ or Thunderbolt™ 3 port


package contents
• USB hub
• Operating instructions
