Description

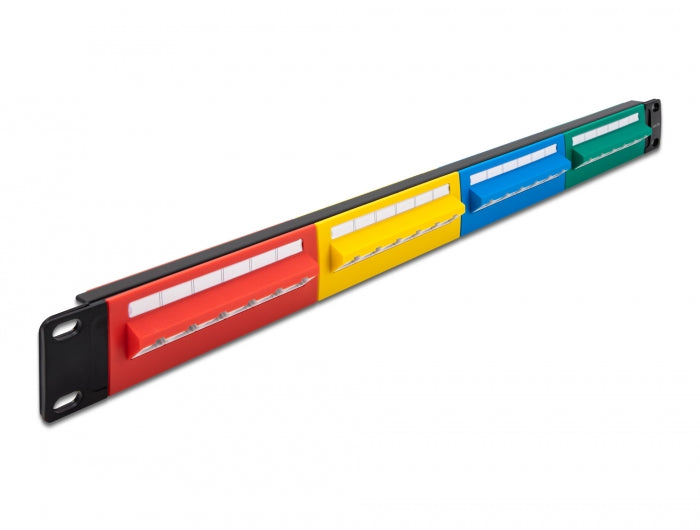

This patch panel by Delock can be used for installation in a 19" network cabinet. Up to 24 network cables can be installed on the LSA strips using a punch-down tool.

specifications
• Connections:
24 x RJ45 socket >
24 x LSA
• For installation in 19" network cabinet, 1 U
• With label field
• Complies with Cat.5e requirements according to ANSI/TIA 568-C
• Assignment according to TIA-568A/B
• For solid and stranded conductors (26 - 22 AWG)
• Material: metal / plastic
• Color: red, yellow, blue, green
• Dimensions (LxWxH): approx. 482.6 x 44.5 x 33.4 mm
package contents
• 19" patch panel
• 4 x cable ties 4.6 x 200 mm
• 4 x screw M6 x 16 mm
