Description

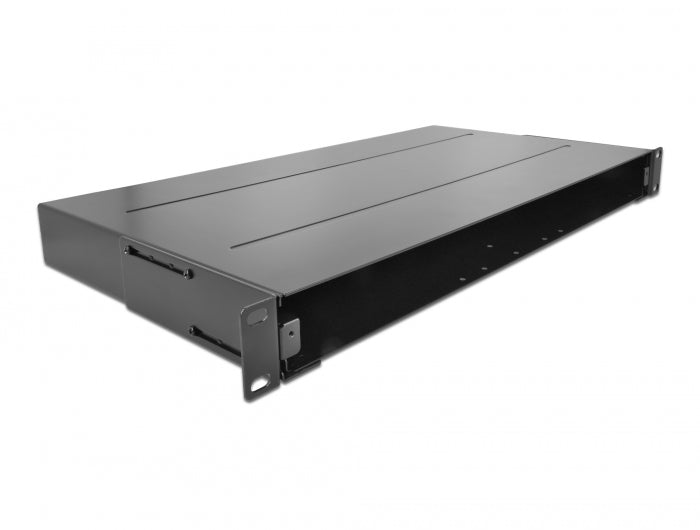

This splice box by Delock can be installed in a 19" equipment cabinet. The cassette is extendable , so it is possible to work on both sides of the couplings without removing the cover.

A wide range of matching front panels with pre-assembled fiber optic couplers is available as accessories , from SC Simplex to LC Quad.

specifications
• For mounting in 19" cabinets, 1 U
• For 48 fibers
• Pull-out drawer, 45° tiltable
• Can be locked with knurled screws
• Cable management rail
• 4 rear cable entries
• Operating temperature: -20 °C ~ 70 °C
• Housing color: black
• Dimensions (LxWxH): approx. 482.6 x 338.5 x 43.7 mm

system requirements
• Delock 19? Splice box front panel


package contents
• 19? fiber optic splice box
• Cable management rail
• 2 x splice cassette for 24 pigtails
• 2 x M20 cable gland
• 4 x cable ties
• Assembly instructions
