Description

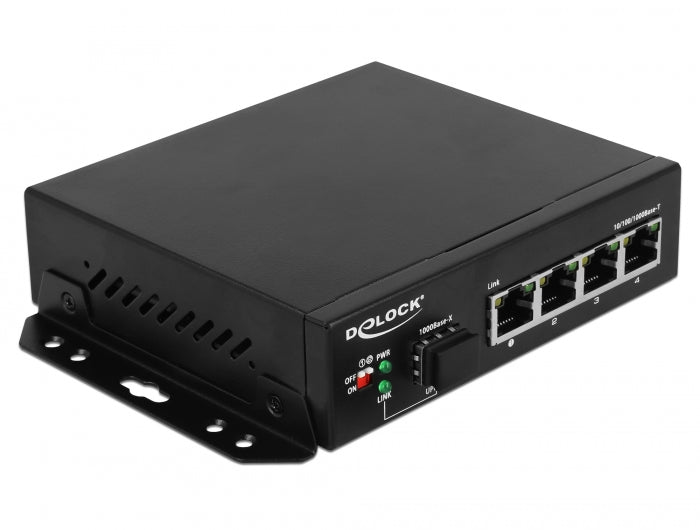

With this Gigabit Ethernet switch from Delock, different network components can be connected. In addition, the built-in SFP slot offers the possibility to expand the network by a fiber optic connection.

specifications
• Connections:
4 x RJ45 socket for 10/100/1000 Mb/s Base-T
1 x SFP slot for 1 Gb/s SFP module
(SFP module not included)
1 x IEC power connector
• Data transfer rate up to 1 Gb/s
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• LEDs for status control
• VLAN (port isolation or 1:1 mode) adjustable via DIP switch
• 330 m long range mode with 10 Mb/s
• Robust metal housing
• Removable wall mount
• Fanless
• Internal power supply
• Power consumption: max. 10 W
• Operating temperature: -20 °C ~ 60 °C
• Dimensions (LxWxH): approx. 125 x 109 x 32 mm

system requirements
• Device with a free RJ45 port


package contents
• Switch
• Wall mounting bracket
• Power cable
• Operating instructions
