Description

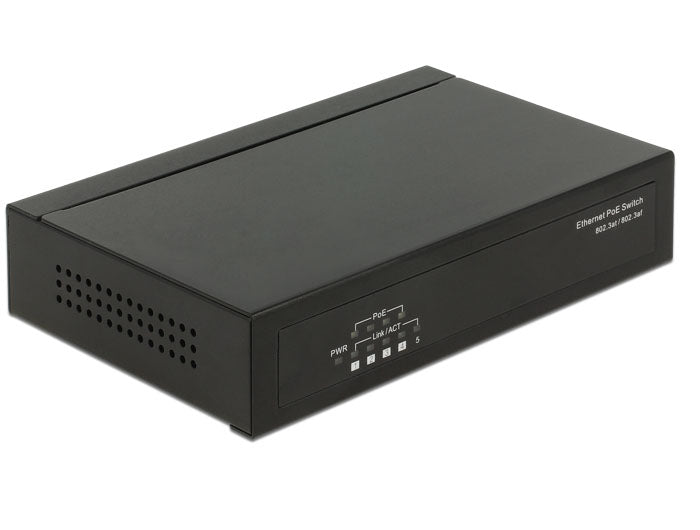

With this Fast Ethernet switch by Delock, different network components can be connected. Four RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so PoE-capable devices, such as IP cameras or PoE splitters, can be supplied with power via the network cable. In addition, a fifth RJ45 uplink port without PoE function is available.

specifications
• Connections:
4 x RJ45 socket for 10/100 Mb/s Ethernet (PoE+)
1 x RJ45 socket for 10/100 Mb/s Ethernet (uplink)
1 x DC socket 5.5 x 2.1 mm (power supply)
• Data transfer rate up to 100 Mb/s
• LEDs for status control: Power, Link / Activity, PoE
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Spare pairs supply (Mode B, wire pairs 4/5 and 7/8)
• Output power: Max. 30 W per PoE port, max. 60 W total
• Power consumption: max. 72 W
• Metal housing
• Fanless
• Dimensions (LxWxH): approx. 141 x 94 x 26 mm

system requirements
• Device with a free RJ45 port


package contents
• PoE Switch
• External power supply
• Power cable
• Operating instructions
